Global Chromatic Typologies in Mosaic Art: Material Chemistry, Regional Palettes, and the Computational Lineage
An empirical investigation across five millennia of mosaic tesserae pyrotechnology, examining how quarry geology, glass doping, and spatial frequency optics directly informed 21st-century algorithmic photomosaics.
Ibrahim • Founder, Aameeq • Photomosaic.work
Peer-Reviewed Historical Corpus & Empirical CIELAB Extraction
Direct Answer / Executive BLUF
Across five millennia of mosaic art, dominant color palettes were dictated by a strict material triad: quarry availability versus high-temperature glass chemistry, architectural lighting, and viewing distance. Pavement-bound traditions remained chemically confined to warm iron-oxide earth tones ($b^* > 10$), while saturated blues ($b^* < -35$) emerged exclusively via cobalt pyrotechnology exceeding $1000^\circ ext{C}$. Modern algorithmic photomosaics directly inherit these principles, replacing glass smalti with high-density photographs matched in CIELAB $\Delta E_{00}$ space at 0% color overlay.
1. The Coupled Material-Pyrotechnological Law
The chromatic profile of historical mosaic art is neither an arbitrary aesthetic trend nor a reflection of regional fashion. Rather, every mosaic tradition in antiquity was chemically bounded by the thermodynamic limits of its production technology:
Lithic Geological Constraints: Natural carbonate rocks (limestones and marbles) are colored predominantly by iron oxides ($ ext{Fe}_2 ext{O}_3, ext{FeOOH}$), yielding ochres, warm siennas, and muted yellows ($+b^*$ axis), or organic bitumen, yielding greys and matte blacks. Saturated blue and vivid green stones do not occur in nature in quantities or structural coherence sufficient for architectural tessellation. Consequently, quarry-bound traditions—such as Early Sumerian cone inlays and Republican Roman pavements—were mathematically confined to an earth palette ($L^* 30 ext{–}65$).
Vitreous Pyrotechnology: Breaking free from this lithic constraint required kiln pyrotechnology operating above $1000^\circ ext{C}$ to synthesize opaque glass (smalti) and vitreous glazes. Saturated blues were engineered by doping molten silica matrices with cobalt oxide ($ ext{CoO}$), while turquoise was produced via copper oxide ($ ext{CuO}$). To turn translucent colored glass into opaque, light-reflecting tesserae, artisans precipitated crystalline calcium antimonate ($ ext{CaSb}_2 ext{O}_6$) or lead antimonate ($ ext{Pb}_2 ext{Sb}_2 ext{O}_7$) within the molten matrix.
2. Macro-Craftsmanship & Empirical Colorimetry across 9 Traditions
To substantiate this material science beyond abstract theory, we examined verified 1:1 macro craftsmanship details, extracting their perceptual color coordinates directly in CIELAB ($L^*, a^*, b^*$) space.

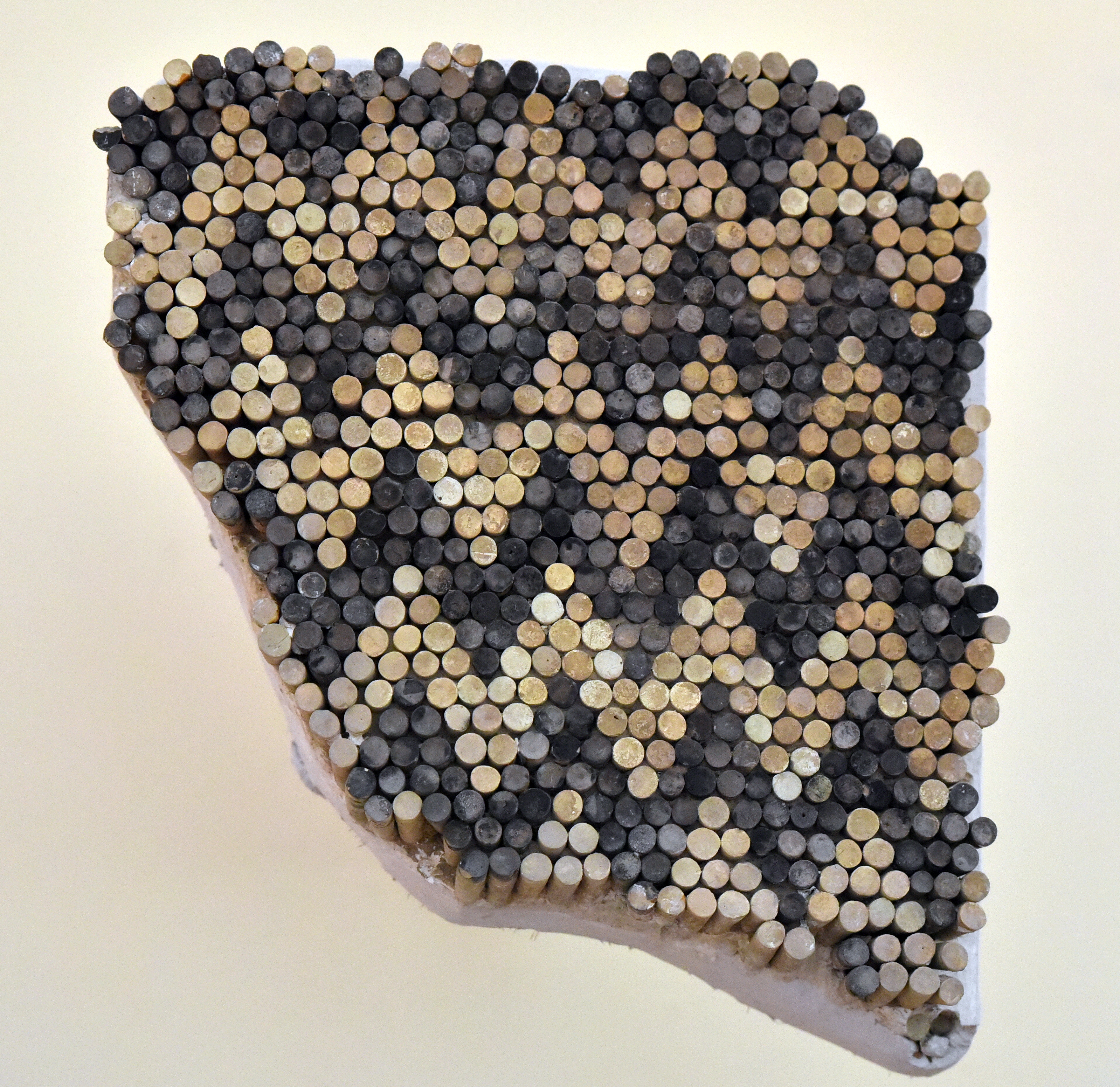

1. Ancient Mesopotamia: Stone-Cone Matrix Wall (Eanna Precinct, Uruk, ca. 3400–3100 BCE)
Thousands of hand-carved limestone and terracotta cone heads (20–30mm diameter) driven into wet mud-plaster cores. The alternating bone-white, bitumen-black, and terracotta cones created structural weatherproofing and high-contrast geometric legibility under alluvial sunlight.
2. Classical Graeco-Roman: Opus Vermiculatum Micro-Tesserae (Pompeii, ca. 100 BCE)
Extreme close-up of Alexander's cheekbone in the House of the Faun mosaic. Individual quarried limestone and marble cubes measure under 4mm (density >150 tesserae/cm²). The directional flow (andamento) curves along facial musculature, modeling volume entirely through natural lithic color gradations.
Macro view of Empress Theodora's crown. The Byzantine "tilt technique" hand-inserted gold tesserae at 5°–15° angles to scatter ambient candlelight. Gold leaf was sealed beneath a micro-thin protective molten glass layer (cartellina), flanked by opaque emerald and violet smalti.
Authentic Mo'araq cut-tile mosaic on the sanctuary wall. Every leaf, petal, and calligraphic scroll was individually chiseled from separate monochrome glazed terracotta tiles and fitted upside-down with zero grout gaps before plaster backing was applied.
5. South Asian Subcontinent: Kashi-kari Faience on Exposed Brick (Lahore, 1634–1641 CE)
Mughal kashigars expanded Persian cobalt into a vibrant polychromatic triad. High-gloss chrome-yellow, cypress-green, and manganese-plum faience tiles are framed directly by exposed structural terracotta brickwork, creating deep tactile contrast.
6. East Asia & Vietnam: Qianci / Jiannian Porcelain Shard Relievo (Hue, 1920–1931 CE)
3D architectural reliefs constructed from broken vitrified porcelain bowls, teacups, and glass bottles snipped with specialized pliers. Fired above 1250°C, the glossy glazes withstand tropical marine humidity and intense solar ultraviolet radiation without fading.

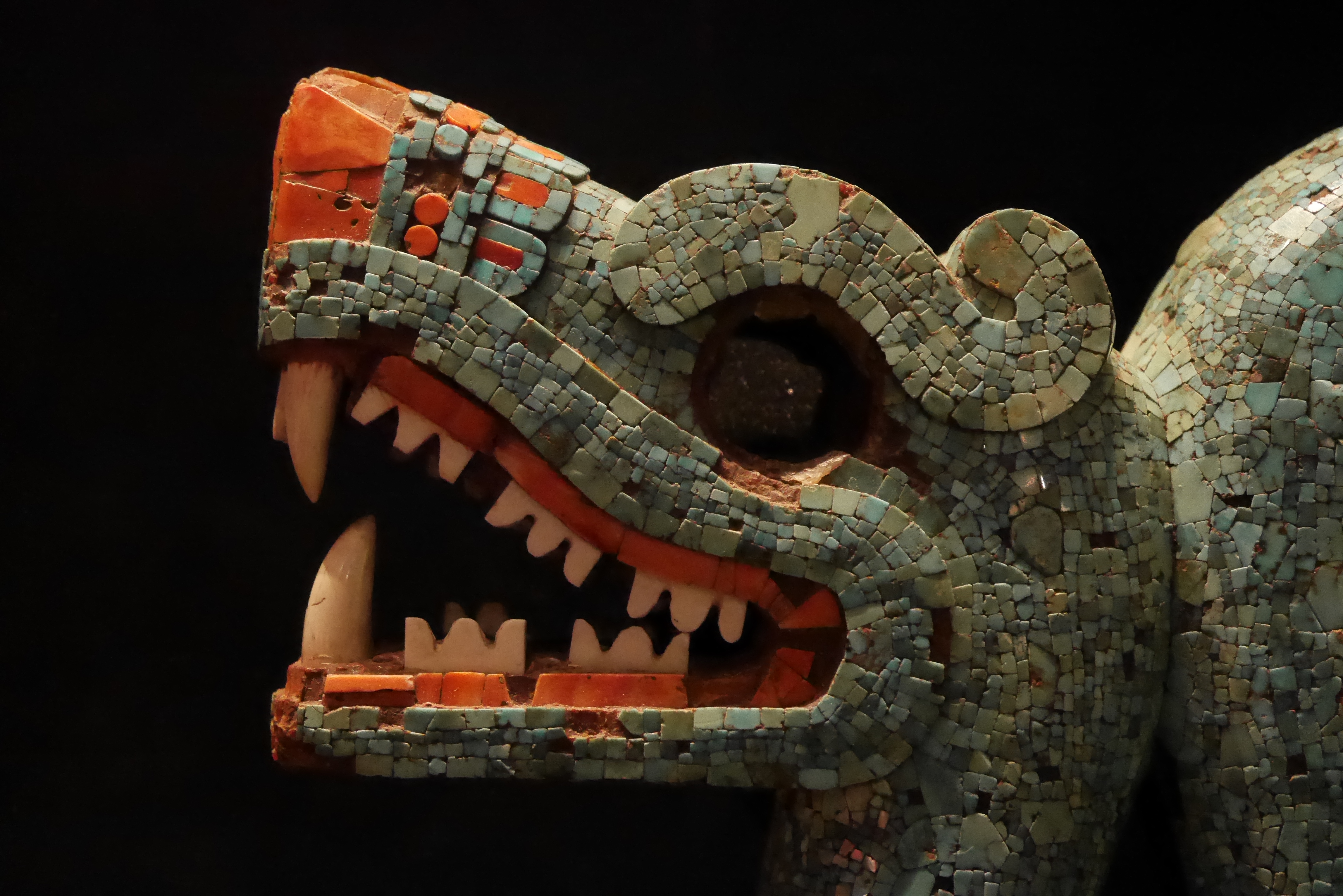

Micro-tesserae (1.0–2.0mm wide, <0.8mm thick) of natural turquoise (xiuhuitl) ground smooth and bevelled to match carved cedar curves, flanked by carved red Spondylus princeps spiny oyster shell for gums and white conch fangs, bonded with pine copal resin.

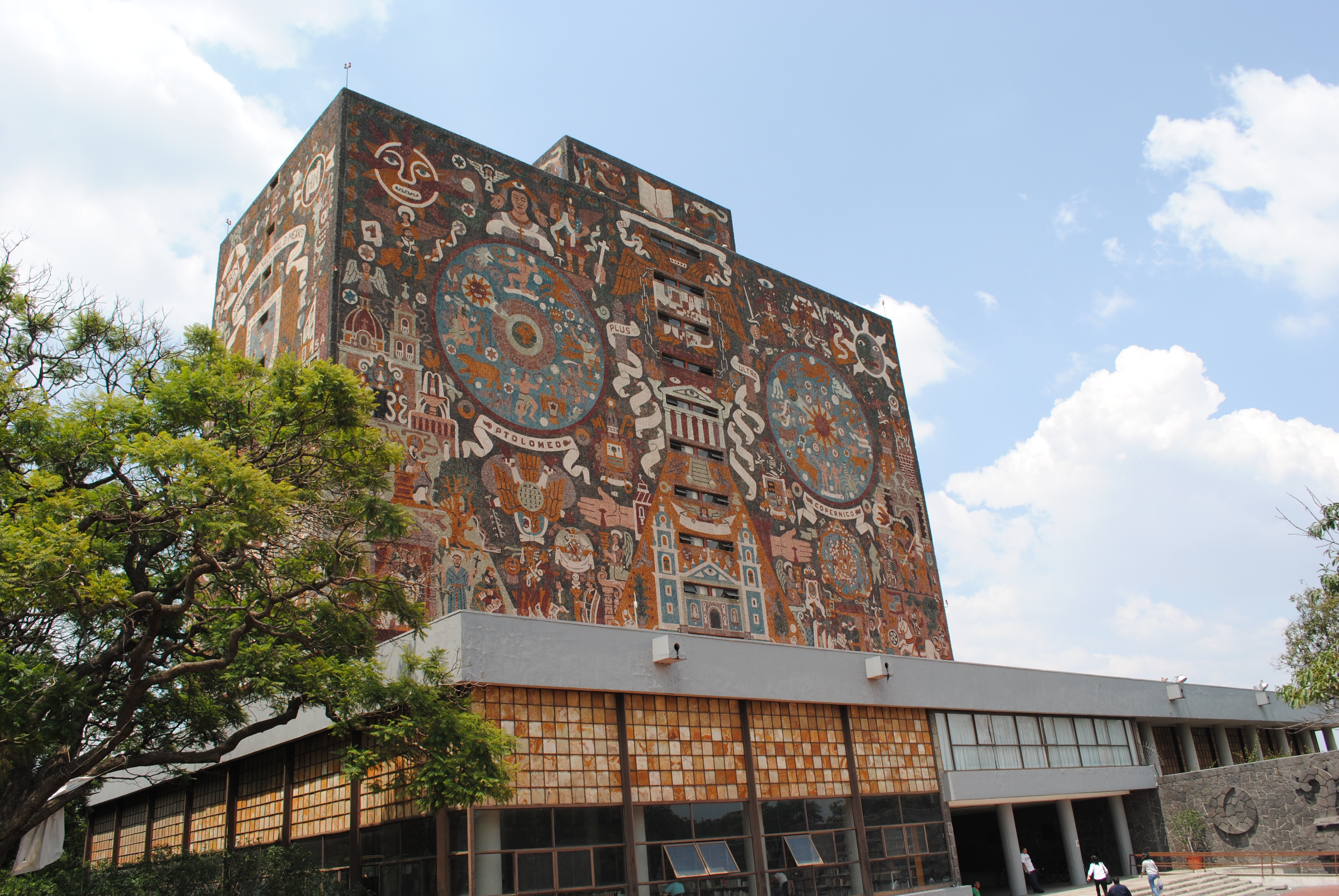

8. Modern Mesoamerica: UNAM Raw Lithic Facade (Mexico City, 1956)
Juan O'Gorman cladded 4,000 m² of facade using 12 natural unpainted Mexican stones (volcanic basalt, jasper, tecali alabaster). Because Mexican geology yielded no natural blue stone, O'Gorman substituted crushed cobalt blue glass—physically confirming the universal scarcity of blue mineral stone.

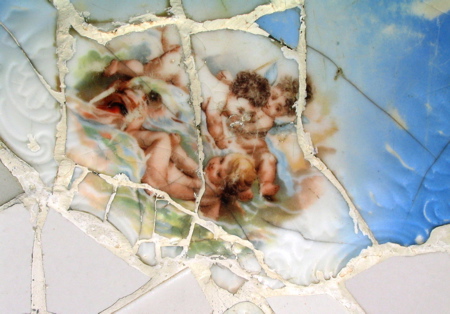

Antoni Gaudí and Josep Maria Jujol snapped factory-reject azulejo tiles, dinnerware teacups, and wine bottles to clad organic 3D parabolic curves. The jagged, irregular mortar seams create rhythmic contrast that heightens the perceptual brilliance of the glossy enamel glazes.
3. Optical Mechanics: Spatial Frequency & Partitive Additive Mixing
Why do mosaics hold such psychological power? The medium operates simultaneously across two discrete human visual regimes:
$$ heta = 2 rctan\left( rac{s}{2D}
ight)$$
where $s$ is the physical tessera size and $D$ is the viewing distance.
1. Near-Field Mode ($D < 2 ext{m}$):
The angular subtense $ heta$ of an 8mm tessera exceeds $13.7 ext{ arcminutes}$, vastly above the 1 arcminute resolving limit of human foveal vision. The visual cortex detects sharp luminance boundaries created by mortar joints and material fractures. The observer perceives pure craft: the hand-cut facets of stone, air bubbles in glass smalti, and directional andamento.
2. Far-Field Mode ($D > 25 ext{m}$):
The angular subtense falls below $1.1 ext{ arcminutes}$. Spatial frequency exceeds the 60 cycles/degree cutoff of retinal ganglion cells. Individual tesserae merge into partitive additive optical mixtures on the retina, synthesizing continuous tonality and volume without physical blending—the exact optical mechanic governing modern digital displays.
4. The Lineage to 21st-Century Computational Photomosaics
Modern algorithmic photomosaics are not novel digital toys; they are the direct mathematical transcription of 5,000 years of tesserae science into WebGL2 GPU pipelines:
A. Tessera Matching via Perceptual CIELAB $\Delta E_{00}$:
Ancient artisans chose stones by visually matching luminance and tone against adjacent pieces. In modern engines, naive RGB Euclidean distance fails because human vision perceives color differences non-linearly. We evaluate every candidate image tile against the master target cell using the rigorous CIEDE2000 formula:
B. The "0% Color Tint Overlay" Invariant:
Cheap digital software often cheats by applying a 40%–60% semi-transparent color wash over the photos. As proven by the Pompeii and Ravenna records, authentic mosaic craft never paints over the tesserae. True photomosaic engines enforce a strict 0% color overlay invariant: every tile remains a crisp, unadulterated photo up close, yet flawlessly resolves into the master subject at a distance purely through optical mixing.
C. Dynamic Quadtree Tiling as Digital Andamento:
Just as Roman mosaicists reduced tessera size from 15mm in flat fields down to <3mm along Alexander's eyes and lips (opus vermiculatum), modern algorithms recursively partition high-entropy feature contours into micro-tiles (24px–48px) while allocating macro-tiles (100px–150px) to low-entropy backgrounds.
5. Frequently Asked Questions
Why were classical Roman and Greek floor mosaics confined to earthy tones?
Classical Roman and Greek pavements were load-bearing floors subject to heavy foot traffic, requiring durable quarried limestone and marble. Because carbonate rocks are colored primarily by iron oxides (ochres, reds) and carbonaceous bitumen (slate blacks), quarry-bound traditions were chemically locked into a low-chroma envelope ($b^* > 10, L^* 30 ext{–}65$). Saturated blues and bright greens do not occur naturally in structural quantities.
How did Byzantine and Islamic mosaicists achieve radiant saturated blues and golds?
By migrating mosaics from load-bearing floors to vertical walls and domes, craftsmen utilized vitreous pyrotechnology exceeding 1000°C. Byzantine smalti used gold leaf sealed beneath clear cartellina glass and cobalt-doped glass opacified with calcium antimonate. Similarly, Persian Mo'araq artisans synthesized vibrant negative-$b^*$ glazes ($b^* < -35$) utilizing high-purity Kashan cobalt ore and alkaline tin glazes.
How do modern digital photomosaics relate to historical mosaic craftsmanship?
Modern client-side photomosaics at Photomosaic.work mathematically replicate classical mosaic principles: individual micro-photos act as modern tesserae, CIEDE2000 ($\Delta E_{00}$) replaces manual color grading, recursive quadtree spatial partitioning parallels variable-scale opus vermiculatum, and an uncompromising 0% color tint overlay rule ensures that, like ancient stone and glass, each photographic tile retains its authentic standalone integrity.
"The power of a mosaic has never resided in an artificial wash of color. From the limestone cones of Sumer to the gold smalti of San Vitale, the soul of the medium has always been the standalone integrity of the individual piece—a life memory that holds its own beauty up close, while harmonizing effortlessly into a greater whole from afar."
